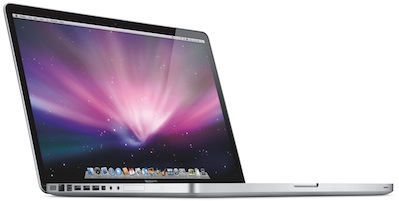

MacBook Pro (17-inch, Mid 2010)


Family: MacBook Pro

Codename: ?

Gestalt ID: 406

Minimum OS: 10.6.3

Maximum OS: 10.10.4

Introduced: April 2010

Terminated: February 2011


CPU: Intel Core i5 ("Arrandale")

CPU Speed: 2.53 GHz

CPU Cores: 2

FPU: integrated

Bus Speed: 1066 MHz

Register Width: 64-bit

Data Bus Width: 64-bit

Address Bus Width: 64-bit

Level 1 Cache: 32 kB data, 32 kB instruction

Level 2 Cache: 256 kB per-core (512 kB total)

Level 3 Cache: 3 MB on-processor


RAM Type: PC3-8500 SO-DIMM

Minimum RAM Speed: 1066 MHz

Onboard RAM: 0 MB

RAM slots: 2

Maximum RAM: 8 GB

Expansion Slots: 1 ExpressCard/34


Screen: 17" LED-backlit TFT

GPU: NVIDIA GeForce 330M, Intel HD Graphics

VRAM: 512 MB GDDR3, 256 MB shared (see notes)

Max Resolution: 1920x1200

Video Out: Mini DisplayPort

Camera: iSight


Hard Drive: 500 GB 5400 RPM

ATA Bus: Serial-ATA

Optical Drive: 24x/24x/10x/8x/8x/4x/4x CD-RW/DVD±RW/DVD±R DL


USB: 3 2.0

Firewire800: 1

Audio Out: stereo 24 bit mini, Optical S/PDIF, HDMI via Mini DisplayPort

Audio In: stereo 24 bit mini, Optical S/PDIF

Speaker: stereo

Microphone: mono


Ethernet: 10/100/1000BaseT

Wi-Fi: 802.11a/b/g/n

Bluetooth: 2.1+EDR


Power: 85 Watts

Battery Life: 8-9 hours

Dimensions: 0.98" H x 15.47" W x 10.51" D

Weight: 6.6 lbs.


The MacBook Pro's second graphics chipset used a portion of main memory as VRAM. Though reported as a 256 MB graphics system, the chipset actually used up to 272 MB of RAM.

Introduced in April 2010, the MacBook Pro (17-inch, Mid 2010) was a speed-bump of the MacBook Pro (17-inch, Mid 2009). Improvements included a faster processor, and improved graphics chipsets. The MacBook Pro (17-inch, Mid 2010) shipped in a single configuration, with 4 GB of RAM, for $2299. Built-to-order options included a 2.66 GHz Core i7 processor, a 500 GB 7200 RPM hard drive, a 128, 256, or 512 GB solid state drive, and an anti-glare display. The MacBook Pro (17-inch, Mid 2010) was replaced in Febrary 2011 by the MacBook Pro (17-inch, Early 2011).
