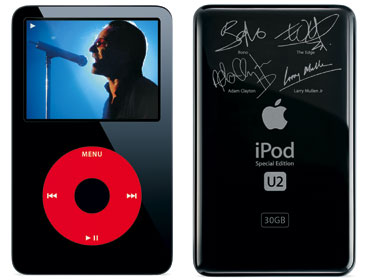

iPod (with video, U2 SE)


Family: iPod

Codename: ?

Minimum OS: iPod video OS 1.0

Maximum OS: iPod video OS 1.1

Introduced: June 2006

Terminated: September 2007



CPU Speed: dual 80 MHz embedded (?)

FPU: none

Register Width: 32-bit

Data Bus Width: 32-bit

Address Bus Width: 32-bit

ROM: 32 MB

Onboard RAM: 32 MB

Maximum RAM: 32 MB


Screen: 2.5" backlit LCD

Max Resolution: 16-bit 320x240

Video Out: composite (via audio port), s-video (via Dock Connector)


Hard Drive: 30 GB 4200 RPM

ATA Bus: ATA-66


USB: via Dock Connector

Audio Out: stereo 16 bit mini

Speaker: clicker


Dimensions: 4.1" H x 2.4" W x 0.43" D

Weight: 0.3 lbs.

Introduced in June 2006, The iPod (with video, U2 SE), brought the familiar red circle back to the iPod line. Differing from the 30 GB iPod (with video) only in color and price, it sold for $329, and came with a coupon for 30 minutes of exclusive U2 video content available on the iTunes Video Store. In September 2006, Apple cut the price to $279.
