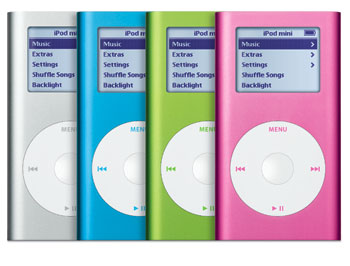

iPod mini (2nd gen)


Family: iPod

Codename: ?

Minimum OS: iPod mini OS 1.0

Maximum OS: iPod mini OS 1.4.1

Introduced: February 2005

Terminated: September 2005



CPU Speed: dual 80 MHz embedded

FPU: none

Register Width: 32-bit

Data Bus Width: 32-bit

Address Bus Width: 32-bit

ROM: 32 MB

Onboard RAM: 32 MB

Maximum RAM: 32 MB


Screen: 1.67" backlit LCD

Max Resolution: 1-bit 138x110


Hard Drive: 4/6 GB 4200 RPM

ATA Bus: ATA-66


USB: via Dock Connector

Firewire: via Dock Connector

Audio Out: stereo 16 bit mini

Speaker: clicker


Dimensions: 3.6" H x 2.0" W x 0.5" D

Weight: 0.225 lbs.

Released more than a year after the original iPod mini, the iPod mini (2nd gen) made modest changes to the product line. In addition to the inclusion of a high-end 6 GB model, Apple dropped the gold color, leaving a four-color lineup. The 4 GB iPod mini (2nd gen) sold for $199, while the 6 GB model sold for $249.
