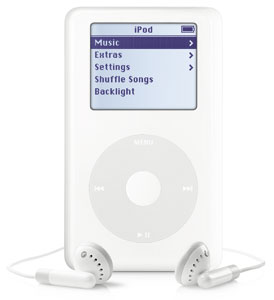

iPod (Click Wheel)


Family: iPod

Codename: ?

Minimum OS: iPod OS 3.0

Maximum OS: iPod OS 3.1.1

Introduced: July 2004

Terminated: June 2005



CPU Speed: dual 80 MHz embedded

FPU: none

Register Width: 32-bit

Data Bus Width: 32-bit

Address Bus Width: 32-bit

ROM: 32 MB

Onboard RAM: 32 MB

Maximum RAM: 32 MB


Screen: backlit LCD

Max Resolution: 1-bit 160x128


Hard Drive: 20/40 GB 4200 RPM

ATA Bus: ATA-66


USB: via Dock Connector

Firewire: via Dock Connector

Audio Out: stereo 16 bit mini

Speaker: clicker


Dimensions: 4.1" H x 2.4" W x 0.57" D

Weight: 0.35 lbs.


the 40 GB model was 0.69" deep and weighed 0.39 lbs.

Announced in July 2004, the iPod (Click Wheel) was thinner, lighter, and cheaper than its predecessor. It also featured a redesigned hardware interface, based on the successful Click Wheel interface used for the iPod mini. Battery life was also dramatically improved, thanks to the use of a PortalPlayer PP5020 System-on-a-chip, which was much less power-hungry than the PP5002 used in previous players. The iPod (Click Wheel) was available in two models: a 20 GB model sold for $299, while a 40 GB model was available for $399. In February 2005, the 40 GB model was dropped, and the price of the 20 GB model was cut to $249.
